Payment & Shipping Terms:
|Condition:||100% New||Application:||Concrete Building Such As Buildings, Bridges, Roads, Foundations|
|Rubber Hose:||3m||Power:||380V/50Hz, 220V/60Hz Or Others|
|Pipe Size:||125mm||Boom Section:||3|

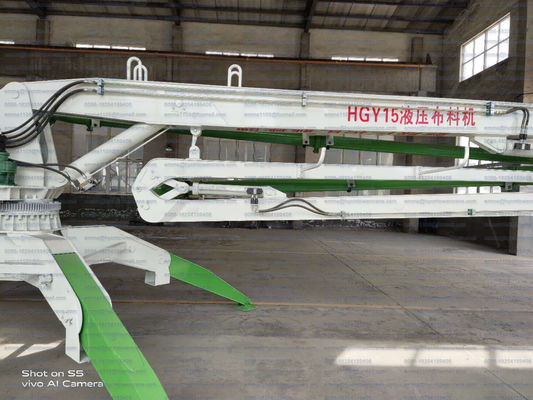

Promotion HGY15 Mobile Type Concrete Placing Boom Wire Cable Control
Mobile hydraulic concrete placing booms mainly include 13m, 15m, 17m and 21m driven by fully hydraulic system.
It does not need to be fixed while working and could be moved to another place by tower crane on site, highly movable and flexible.
It is very suitable and widely used for the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites without being influenced by the size and shape of floors.
|Boom length||15 m|
|Hose length||3 m|
|Rotary speed||0.23 r/min|
|Drive mode||Completely Hydraulic|
|Weight||Self weight||3.2 t|
|Counter weight||2.2 t|
1. We will provide the professional pre-sale,sale and after-sale service for our clients!
2. We can sent our engineers to help to install the concrete placing boom.
3. Training operators for customers free of charge, teach them how to operate and the daily maintain!
4. All our after-sales engineers have the passports,and most of them have rich experience in foreign installation.
5. Guarantee time is 12 months! And no profit component supply!
Q: How many kinds of concrete placing booms you have?
A: We have below series.
1: 12/15/18m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17/18m Mobile Hydraulic Spider Concrete Placing Booms
3: 28/32m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: Do you have concrete placing booms with boom length over 32m?
A: Yes, boom length over 32m such as 33m, 34, 36m, 38m needs to be customized by order.
Q: Is there any proportional multiway valve for concrete placing boom?
A: Proportional multiway valve is optional for more smooth operation like pump trucks.
Q: Our tower crane is not big enough to lift tubular column for installation, how can we do?
A: We can make the tubular column separate (4m, 5m, 6m) for light weight, fast and easy installation.
Q: How to fix the mobile concrete placing booms?
A: The mobile hydraulic concrete placing booms do not need to be fixed while working.
More products available: Construction Machinery
---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.
---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.
---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.
---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.
SC Construction Man and Material Elevator
------ Rack and pinion elevator, special for the lifting work of construction Man and Material, 1000kg to 4000kg capacity, Passenger and Material, up to 200m. .
SS Building Material Lift / Hoist
------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.
SJY Scissor Lift
Small Jib Crane
