Payment & Shipping Terms:
|Condition:||100% New||Application:||Load Passengers To Aerial Work|
|Working Height:||14m||Lifting/Descend Speed:||60/50 Sec|
|Lifting Motor/Drive Motor:||24/4.5 V/kw||Battery:||4x12/300 V/Ah|
|Platform Material:||High Strength Steel||Platform Size:||2270x1120 Mm|
|Color:||Orange,blue, Yellow Or Others|

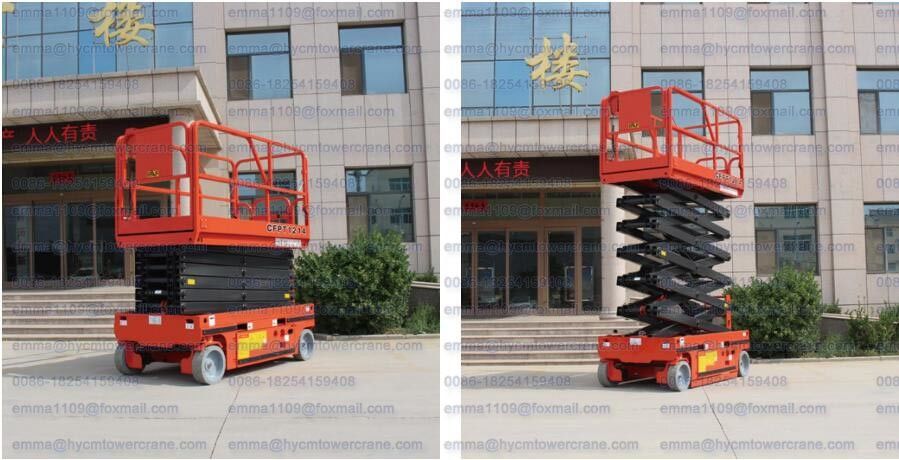

CFPT1214 Self Propelled Scissor Lifts Hydraulic Drive Safe Working Platform
General Introduction of this mini scissor lift platform
1. Load capacity: 320kg
2. Lifting height: 13.8m
3. Applications: aerial installation, maintenance, clean at the construction sites, workshops, warehouse, hotel, airport, wharf, gas station and stadium etc.
4. Custom-made according to the requirement
5. The worker can control the scissor lift on the platform when raised by handle .
6. The worker can also control the lift on the floor by handle control
|Rated Load Capacity||Kg||320|
|Extended platform load||Kg||113|
|Max. working height||m||13.8|
|Max. platform height||m||11.8|
|Ground clearance (Lower)||mm||100|
|Ground clearance (Raised)||mm||19|
Min. Turning radius
Min. Turning radius
|Lifting motor/Drive motor||V/Kw||24/4.5|
|Max. working inclination||.||1.5/ 3|
Self-lock gate on platform
Drivable at full height
Non marking tyre
Automatic brakes system
Emergency lowering system
Emergency stop button
Tubing explosion-proof system
Onboard diagnostic system
Tilt sensor with alarm
All Motion Alarm
Automatic pothole protection
As the ideal model for flexible operation in narrow space, hydraulic electric slab scissor lifts feature nice appearances, compact structures, stability, reliability, strong power performance and field adaptability, flexible operation, excellent quality and safety.
Scissor Lifts cover 8m to 16m work height, hydraulic powered, electric motor drive, which have long run time, and high productivity. The energy•efficient direct electric drive boosts your productivity with industry•leading duty cycles. It is safe and reliable,so it is the optimal product for aerial lifting operation, such as aerial cleaning, repairing, and maintenance.
Self-propelled Scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With proportional controls for lift and drive functions, the CFMG slab scissor lift boasts the versatility to work in indoor and outdoor construction, maintenance and installation applications with ﬁrm, level surfaces.
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Sereral sets wearing parts will be free for you
