Product Details:
Payment & Shipping Terms:
|
| Application: | Buildings And Projects | Type: | Fixed With Tower Head |
|---|---|---|---|
| Max. Load: | 6 T | Jib Length: | 45 M |
| Tip. Load: | 2.2 T | Power supply: | 380V/50Hz Or According To Client's Requirements |
| Mast section: | 1.6*1.6*3 M (split Type) | Main Chord: | 180*18 Mm (angle Steel) |

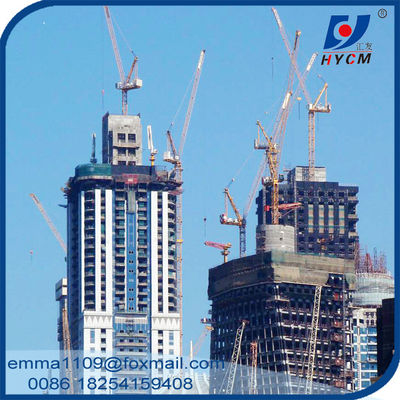

D4522 Jib Luffing Tower Crane 45m Jib Length 2.2t Tip Load in UAE
Short Description
In tight urban work spaces there is often insufficient space for the jib to rotate without being blocked by existing buildings/structures or other cranes. For such sites, luffing jib cranes offers the ideal solution.
Our luffing cranes range from 120 to 500tm.
All of our luffing cranes offer the standard features plus additional options such as level-luffing.
Specification
| Model | QTD120 (4522) Luffing Tower Crane | |
| Working Radius (m) | 45 | |
| Max. Load Capacity (T) | 6 | |
| Tip Load (T) | 2.2 | |
| Free standing height (m) | 37 | |
| Max. Height with anchorages (m) | 160 | |
| Mast Section dimension (m) | 1.6×1.6×3, angle steel 180×18mm | |
| Hoisting Mechanism | Speed (m/min) | 80/40/8.5 40/20/4.25 |
| Motor power (kw) | 24/24/5.4 | |
| Slewing Mechanism | Speed (r/min) | 0.6 |
| Motor power (kw) | 2*3.7 | |
| Trolleying Mechanism | Speed (m/min) | 10 |
| Motor power (kw) | 30 | |
| Jacking-up System | Speed (m/min) | 0.4 |
| Motor power (kw) | 7.5 | |
| Total Power (kw) | 34 | |
| Power Supply | 380V/50Hz or according to clients needs | |
Other important advantages
1) Fast, simple and safe erection of small, light individual modules.
2) Excellent choice for narrow sites in the city as the working jib/boom is luffing type.
3) Stable function of Frequency Inverters and other electrical control systems for main mechanism, and easy and convenient self repair and maintenance for the clients.
4) Ball blasting and several painting for steel structure surface of tower cranes, the hot-dip galvanizing process is used on the handrails, and the time limit of the galvanized quality assurance longer years.
5) Good at endurance, adapting to atrocious weather like higher of lower temperature, acid rain and typhoon.
Commercial Terms
Price: Negotiable
Delivery time: 15-30 days after receiving 30% advanced payment
Trade terms: FOB (qingdao)
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Packing: Standard Exporting Packing
Warranty: At least 12 months
