SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load

China SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load supplier
SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load supplier SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load supplier SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load supplier

Large Image :  SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load

Product Details:

Place of Origin: China
Brand Name: HYCM or XINGDAO
Certification: CE, ISO
Model Number: SC Building Hoist

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $21500-22900 per set
Packaging Details: Naked packing, 1*40’HQ containers.
Delivery Time: 10 days after receiving the deposit or origin LC
Payment Terms: Western Union, L/C, T/T
Supply Ability: 40 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Type: Electric Cable Climbing Max. Load: 2t
Max. Height: 150-200 M Rated Speed: 33m/min
Power supply: 380V/50Hz Or According To Client's Requirements Motor Power: 3*11kw Or 2*13kw
Motor Brand: Xingxiang, Sanshang, Juli Or Other Mast Section Size: 650*650*1508mm Or 800*800*1508mm

SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load



Description

1. Construction Hoist is also called as Man-Lift, Temporary elevator, Builder hoist, Passenger hoist or Construction elevator.

2. This type of hoist is commonly used on large scale construction projects, such as high-rise buildings or major hospitals.

3. There are many other uses for the construction elevator. Many other industries use the buckhoist for full-time operations, the purpose being to carry personnel, materials, and equipment quickly between the ground and higher floors, or between floors in the middle of a structure.

4. There are three types: Utility to move material, personnel to move personnel, and dual-rated, which can do both. SC series lifting both material and personnel.



Specification

Model SC200
Payload capacity Up to 2000 kg
Speed 33 m/min
Max. lifting height 150 m (Increased lifting height on request.)
Cage width (internal) 1.3 m & 1.5 m
Cage length (internal) 3 m
Cage height (internal) 2.2 m
Motor control Directly driven without inverter
Motor power 2 x 11 kw
Power supply range 380V, 50Hz or 60 Hz, 3 phase
Type of mast 650mm, Tubular steel with integrated rack
Length mast section 1.508 m
Weight mast section with 1 racks 127 kg


Completed safety measures
1. Safety Governor
2. Top limit switch and Bottom limit switch
3. 3-phase switch
4. Buffer Spring
5. Mechanical lock
6. Reducing device
7. Brake pieces
8. Overload Protector
9. Leakage Protection switch
10. Emergency button
11. Terminal and Final stopping switches
12. Guard Rail

Our advantage
1. 15 years of experience in supplying new external climbing tower crane with HYCM Brand.
2. Export to more than 20 countries with CE/ISO/GOST/CU-TR Certificates.
3. Stationary/Traveling and internal climbing type tower crane are available
4. Impeller blasting/rust protection paint
5. Advanced painting process
6. Strict and experience welding line
7. New designed mast, can be used to Internal and external climbing tower crane
8. Well known brand mechanism system, Schneider Electronic control system, Jjiangte and Jiuhe motor
9. Engineers available to service machinery overseas.
10. For warranty, it is 12 months from the B/L date. What's more, some free easy worn spare parts are provided together with the crane.

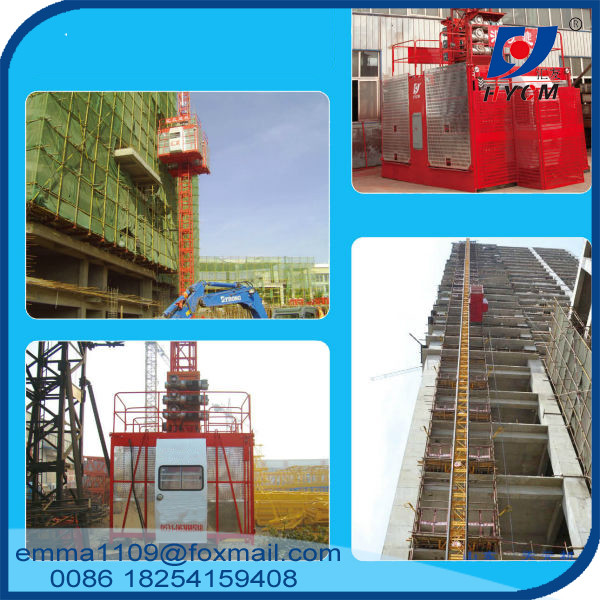

Pictures

SC 200 Elevator Building Hoist Lifting Passenge and Material 2000KG Load
