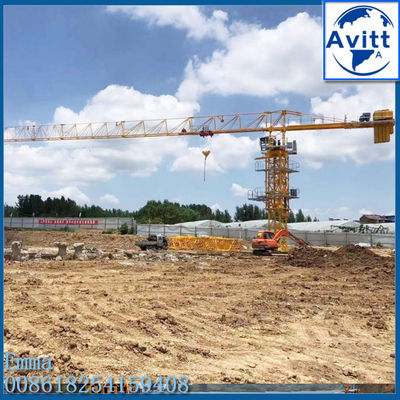

4t QTZ40 Flat Top Tower Crane 27m Freestanding Height For 8 Floor Real Estate Construction
Our Product Introduction
for more products please visit us on hycmtowercrane.com
Basic Information
Place of Origin:
China
Brand Name:
AVITT KANGTAI TOWER CRANE
Certification:
CE, ISO, GOST, CU-TR
Model Number:
QTZ40(4010) Tower Crane
Minimum Order Quantity:
1
Price:
$35600-45900 per set
Packaging Details:
Naked packing, 3*40’HC containers per set PT4010 Flat top tower crane
Delivery Time:
15 days after receiving the deposit or origin LC
Payment Terms:
TT, LC
Supply Ability:
40 sets per month
Product Specification
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed Without Tower Head
Max. Load:
4 T
Jib Length:
40 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.2*1.2*3 M S24
Color:
Yello, Red Or Others
Main Chord:
160*16 Mm
Highlight:
TC4810 hydraulic tower crane
,29m freestanding tower crane
,telescopic topkit crane
Our Product Introduction
for more products please visit us on hycmtowercrane.com
Product Description
4t QTZ40 Flat Top Tower Crane 27m Freestanding Height For 8 Floor Real Estate Construction
Shot Technicals
1. Model: QTZ40(4010) Flat top Tower Crane
2. Type: fixed and external climbing
3. jib length: 40m
4. tip load:1.0t
5. max.laod: 4t
6.freestanding height: 27m
Description
1. Fixed Tower Cranes are fixed to the ground on a concrete base
2. The base is connected to the mast sections which offers the crane its height.
3. Further the mast section is attached to the slewing unit (lower slewing table, slewing bearing, upper slewing table and slewing body) that allows the crane to rotate.
4. The slewing unit is connected to three parts which are: horizontal jib / boom, shorter counter-jib, and tower cat.
Specification
| Rated Lifting Moment (KN.M) | 400 |
| Type | Fixed without tower head |
| Rated Loading Capacity (t) | 4 |
| Max. Lifting Load (t) | 4 |
| Tip Load (t) | 1.0 |
| Max. Lifting Height (m) | 120 |
| Free standing height (m) | 27 |
| Rope length (m) | 320 |
| Span (m) | 40 |
| Working range (m) | 3 to 40 |
| Slewing speed (r/min) | 0.7/0.35 |
| Trolley peed (m/min) | 38.6/25.2 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 12.89 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 24.9 |
| Electric switch box | Schneider |
| Hoisting speed (m/min) | (a=2) 64.15/32.57/7.0; (a=4) 32.14/15.60/3.5 |
| Mast section (m) | 1.2*1.2*3m S24 |
Details
1. Advanced technical parameters, max. Radius is 40m, the static height is 27m, it can reach up to max. height 150m by adding mast sections and anchorages.
2. Various tower crane types, such as stationary, external climbing and internal climbing types, is widely used in different construction sites.
3. Good speed adjusting performance, excellent stability.
4. Simple maintenance and reliable work.
5. Advanced electronic appliances, such as Schneider.
6. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.
7. Anti-broken wire rope device and anti-broken shaft device
