QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery

China QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery supplier
QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery supplier QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery supplier QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery supplier

Large Image :  QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery

Product Details:

Place of Origin: China
Brand Name: HYCM TOWER CRANE
Certification: CE, ISO, GOST, CU-TR
Model Number: QTZ160(6518) Tower Crane

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $1119900-131800 per set
Packaging Details: Naked packing, 6*40’HQ or 7*40;HQ containers.
Delivery Time: 25 days after receiving the deposit or origin LC
Payment Terms: TT, LC
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Type: Fixed With Tower Head Max. Load: 10 T
Jib Length: 65 M Tip. Load: 1.8 T
Power supply: 380V/50Hz Or According To Client's Requirements Mast section: 1.835*1.835*2.5m Or 2*2*3m
Electric Box: Schneider Power Supply: 380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need

QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery


Short Description
The tower crane’s lifting height is obviously increased thanks to its self-erecting by adding mast sections and wall attached function.
It is applicable for construction of different industrial, commercial, office, and civil building lower than 200m, and becomes an ideal service-building machine at home.

Specification

Rated Lifting Moment (KN.M) 1600
Model QTZ160(6518) Tower Crane
Max. Lifting Load (t) 10
Tip Load (t) 1.8
Max. Lifting Height (m) 200
Free standing height (m) 50
Rope length (m) 500
Span (m) 65
Working range (m) 3 to 60
Slewing speed (r/min) 0-0.6
Trolley peed (m/min) 0-60
Jacking-up speed (m/min) 0.4
Counter jib length (m) 14.6
Power supply 380V/50Hz or according to client's requirements
Power Capacity (kw) 61.5
Electric switch box Schneider
Main Material (mm) 125*14 /two angle steel with rib
Mast section (m) 1.835*1.835*2.5 or 2*2*3m

Optional parts
(if you need them, please let me know in advance)

  • Anemometer
  • Air condition in cabin

3) Block box
4) Remote control


Application field: Building height up to 60 floors (200m), loading capacity up to 10t, jib length is 65m or short. If you have some special requirements, we will design new type of tower crane for you.

Abroad markets: The Middle East Regions, Southeast Asia, Africa, Russia, ect.

Certificate: ISO9001-2008, CE, GOST

Package: nude in 6*40"HQ or 7*40’HQ container

Payment terms: 30% in advance, 70% balance payment before shipment date

Delivery time: 30 workdays after receiving 30% advanced payment

Warranty: 12 months from the bill date (arrival of destination). And overseas service center is available.

Material: Q345 manganese steel

MOQ: 1 set (the more you buy, the cheap it is)



Technical Features

1) Advanced technical parameters, max. Radius is 65m, the static height is 50m, it can reach up to max. height 200m by adding mast sections and anchorages.

2) The complete crane adopts internationally well-received beautiful shape.
3) The crane features high working speed and excellent speed regulation performance.
4) The cabin is independently installed externally with good vision and large inner space, thus offering a good working environment for operators.
5) Equipped a set of safety devices so as to ensure the tower crane's reliable operation.


 Pictures

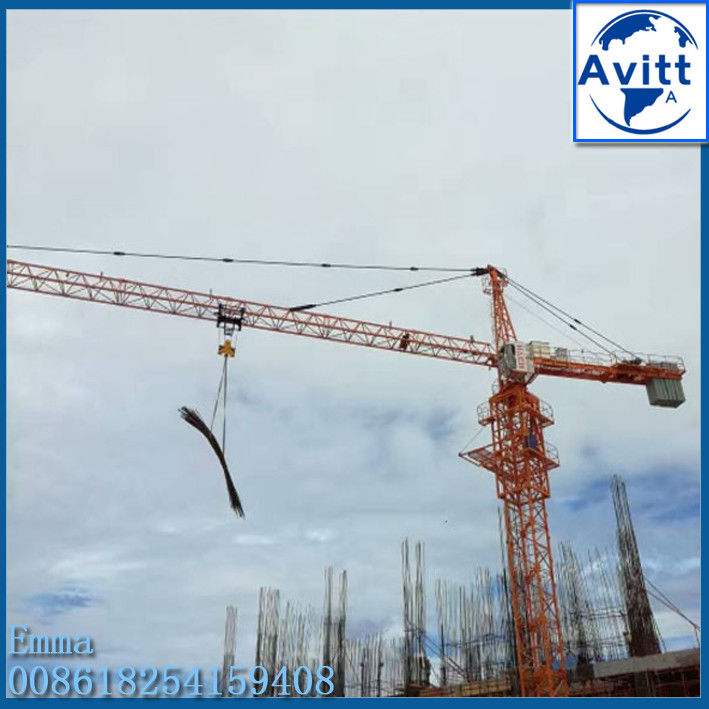

QTZ160 65M Jib Tower Crane 10t Load Construction Projects Machinery
