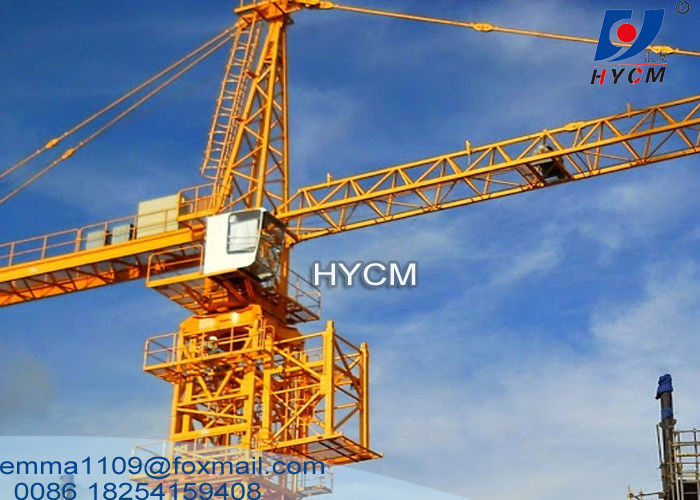

10T QTZ6518 Construction Building Safety Equipment 50M Free Standing Height
Short Description
The tower crane’s lifting height is obviously increased thanks to its self-erecting by adding mast sections and wall attached function.
It is applicable for construction of different industrial, commercial, office, and civil building lower than 200m, and becomes an ideal service-building machine at home.
Specification
| Rated Lifting Moment (KN.M) | 1600 |
| Model | QTZ160(6024) Tower Crane |
| Max. Lifting Load (t) | 10 |
| Tip Load (t) | 2.4 |
| Max. Lifting Height (m) | 200 |
| Free standing height (m) | 50 |
| Rope length (m) | 500 |
| Span (m) | 60 |
| Working range (m) | 3 to 60 |
| Slewing speed (r/min) | 0-0.6 |
| Trolley peed (m/min) | 0-60 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 14.6 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 61.5 |
| Electric switch box | Schneider |
| Main Material (mm) | 125*14 /two angle steel with rib |
| Mast section (m) | 1.835*1.835*2.5 or 2*2*3m |
Optional parts
(if you need them, please let me know in advance) | - Anemometer
- Air condition in cabin
3) Block box
4) Remote control |
Application field: Building height up to 60 floors (200m), loading capacity up to 10t, jib length is 65m or short. If you have some special requirements, we will design new type of tower crane for you.
Abroad markets: The Middle East Regions, Southeast Asia, Africa, Russia, ect.
Certificate: ISO9001-2008, CE, GOST
Package: nude in 6*40"HQ or 7*40’HQ container
Payment terms: 30% in advance, 70% balance payment before shipment date
Delivery time: 30 workdays after receiving 30% advanced payment
Warranty: 12 months from the bill date (arrival of destination). And overseas service center is available.
Material: Q345 manganese steel
MOQ: 1 set (the more you buy, the cheap it is)
Competitive Advantage
1. Focusing on tower crane exporting for 15 years;
2. Manufacturer's representative;
3. Preferential ex-factory price, excellent product quality and good after-sales service are our pursuit;
4. Our tower cranes had exported to more than 20 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar and Algeria etc.
We are dedicated to provide you professional solutions with Aclass Service!
