Product Details:
Payment & Shipping Terms:
|
| Application: | Buildings And Projects | Type: | Fixed With Tower Head |
|---|---|---|---|
| Max. Load: | 8 T | Jib Length: | 55 M |
| Tip. Load: | 1.5 T | Mast section: | 1.835*1.835*2.5m (Block Type) |
| Main Chord: | 135*12mm (square Tube) | Color: | Yellow Or Others |
QTP5515 Top Slewing Telescopic Tower Crane Top Flat Type Craines Specifications
Performance parameters and technical indexes reach both domestic and international advanced level.
a. Max. jib length: 55 m
b. Max. lifting capacity: 8 t
c. Max. hoisting capacity at jib tip: 1.5 t
d. Max. lifting moment: 800 KN.M
e. Max. free-standing height: 45 m
f. Max. working height of anchored crane: 150 m
g. Types of tower crane: stationary crane and outside climbing type. Mobile and inner climbing type are available
Specification
| Type | Topless or Flat top no head |
| Max. Lifting Load (t) | 8 |
| Tip Load (t) | 1.5 |
| Max. Lifting Height with anchorage (m) | 150 |
| Free standing height (m) | 45 |
| Rope length (m) | 400 |
| Span (m) | 55 |
| Working range (m) | 3 to 55 |
| Slewing speed (r/min) | 0.6 |
| Trolley peed (m/min) | 40/20 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 15.4 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (KW) | 46.2 |
| Electric switch box | Schneider |
| Hoisting speed (m/min) | (a=2)80/40/8.5; (a=4)40/20/4.25 |
| Mast section (m) | 1.833*1.833*2.5m (135*12mm square steel) |
Advantages
1. Modular design
2. Customised crane configuration
3. Pre-installed assemblies
4. Adjustable load capacity
5. Intelligent high-performance drives
6. Climbing outside or inside buildings
7. Safety monitoring during climbing
8. Top comfort for increased productivity

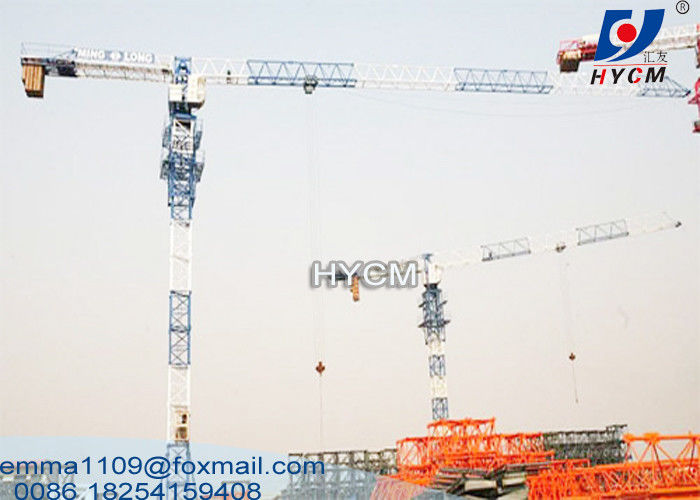

Photos
