630kg Suspended Working Platform ZLP Aluminum Alloy Material For Decorate

China 630kg Suspended Working Platform ZLP Aluminum Alloy Material For Decorate supplier

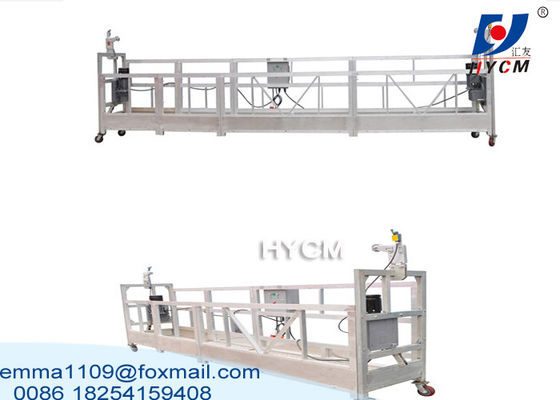

Large Image :  630kg Suspended Working Platform ZLP Aluminum Alloy Material For Decorate

Product Details:

Place of Origin: China
Brand Name: HYCM
Certification: CE, ISO
Model Number: ZLP630 Platform

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2050-2350 per set
Packaging Details: LCL or 20’GP, 40'HQ construction
Delivery Time: 10 days after receiving the deposit or origin LC
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50 sets per month
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Type: Suspended Climbing Max. Load: 630 Kg
Standard Height: 100 M Rated Speed: 9-11 M/min
Power supply: 380V/50Hz Or According To Client's Requirements Motor Power: 2*1.5 Kw
Platform Material: Steel, Hot Galvanized Or Aluminum Platform Length: 6 M

630kg Suspended Working Platform ZLP Aluminum Alloy Material For Decorate


Description

ZLP series Swing Stage, which is developed and produced by ACLASS is ideal for building facade construction, decoration, cleaning and maintenance. It is also widely used in elevator installing, ship building and repairing, or in other areas such as big-size tank, bridge, embankment and chimney. ZLP series versatile knock-down platform provides workers safer, easier and more efficient platform access.

Absolutely guarantee life safety during Aerial working. Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop

Specification

Model No. ZLP630
Rated load(kg) 630
Lifting speed(m/min) 9~11
Hoister model LTD63
Motor power(kw) 2×1.5
Brake torque(N.m) 15.2
Rated stretch of front beam(mm) 1100-1700
Suspending Platform No. of platform rack Single rack
No. of platform 3
L×W×H(mm) (1.5+2+2.5)×690×1180
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) --optional 25×40pcs
Diameter of steel rope(mm) 8.3
Voltage(v) 3PHASES 220V/380V/415V (customized)
Ambient temperature -20℃~+40℃
Ambient relative humidity ≤ 90%(25℃)



The main Part:
1. Suspension Mechanism and Counterweight
The Height of the platform can be adjusted within 1150-1750mm with arm which can be stretched out and drawn back, it can be widely used parapet and complicated building in different height, and we can also supply customized platform to meet different requirement from the customers
2. Working Platform
Different material for different requests: Steel, Hot galvanized and Aluminum.

Various platform length for clients to choose.

3. Hoist Motor
LTD6.3 “a” shape hoist

4. Electrical Control box
Installed with international and national famous brands electrical components, our electrical control system consists of many protection devices, Such safety devices as electrical leakage protection device, automatic limited switch, overheat protection, emergency brake, current coverload proof, which make operate more easier, safer and reliable.

5. Safety Lock
When the steel wire rope is broken, blocked, slip out of he hoist or the working platform inclines, the safety lock will lock the rope within 100mm, this safety device is high advanced in China now.



630kg Suspended Working Platform ZLP Aluminum Alloy Material For Decorate630kg Suspended Working Platform ZLP Aluminum Alloy Material For Decorate
