Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Fixed With Tower Head | Max. Load: | 3t |
| Jib Length: | 15m | Tip. Load: | 1.5t |
| Power supply: | 380V/50Hz Or According To Client's Requirements | After Sale Service: | Engineers Available To Service Overseas |
| Color: | Yellow Or According To Clients Need |

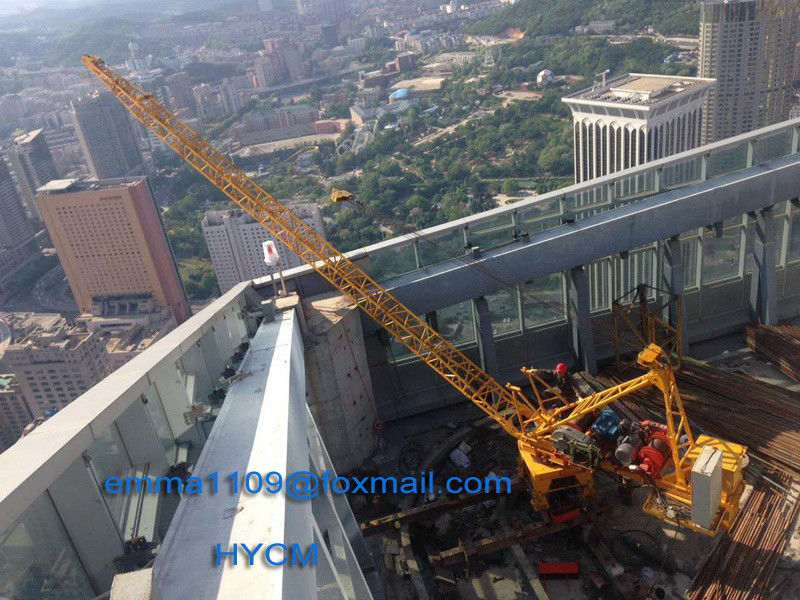

3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
Short Parameter
1.QD30(1515) Derrick Tower Crane
2. Type: fixed
3. jib length:15m
4. tip load:1.5t
5. max.laod: 3t
6.height:120m
Introduction
1) Derrick Crane mainly consists of three mechanisms: luffing mechanism, slewing mechanism, and hoisting mechanism. Which luffing and slewing are VFD control with smooth speed.
2) The luffing ranges from 0° to 84° which cater for different project needs
3) The Derrick Crane features reasonable structure, stable movement, easy installation, easy operation, and high reliability.
Specification
| Main Feature | Main Parameter | |
| Rated load moment capacity (KN.m) | 300 | |
| Max. hoisting capacity(t) | 3 | |
| Tip load(t) | 1.5 | |
| Jib radius(m) | 3.5~15 | |
| Height (m) | 120 | |
| Hoisting mechanism | Retarder | JZQ595 |
| Magnetic Brakes | YWZ-250/45 | |
| Wire rope | 6X37-11-1770-1-1 | |
| Hoisting speed (m/min) | a2=65/32/7 | |
| Slewing mechanism | Retarder | XX100,195 |
| Coupler | YOX250A | |
| Slewing speed (r/min) | 0-0.6 | |
| Trolleying mechanism | Retarder | 18TQ10 |
| Trolleying speed (m/min) | 0-10 | |
| Slewing bearings | Model | 1220.32 |
Our Service
1) We provide our clients with a wide range of derrick cranes that are known for their high tolerance capacity, efficiency and reliability.
3) These are manufactured using high quality steel and other metals, procured from reliable vendors.
4) Could design the Derrick Cranes according to client requirements
5) Insurance the working condition and test the whole Derrick Crane on the factory before shipment
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
Photos
