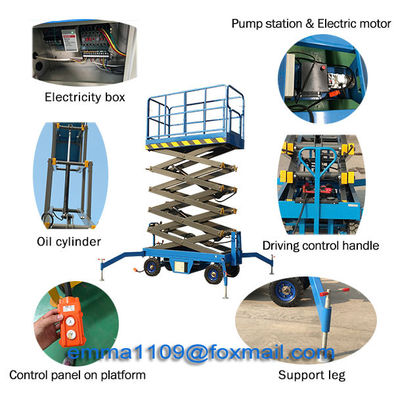

OEM SJY1.0-10 Scissor Lift Load 1000kg Safety Device Battery Moving or Lifting
General Introduction
1. Load capacity:1000kg
2. Platform height: 10m
3. Drive power: 4 pneumatic rubber tyres.
4. Applications: aerial installation, maintenance, clean at the construction sites, workshops, warehouse, hotel, airport, wharf, gas station and stadium etc.
5. Custom-made according to the requirement
6. The worker can control the scissor lift on the platform when raised by handle .
7. The worker can also control the lift on the floor by handle control
Specification
| Model No. |
SJY1.0-10 Scissor Lift |
| Type |
Mobile and self rising (manpower travel, could equipt assisted travel by adding battery ) |
| Load Capacity |
1000kg |
| Platform Height |
10m |
| Working Height |
12m |
| Platform size |
2100*1230mm |
| Total size (without guardrail) |
2260*1720*1610mm |
| Weight |
1700kg |
| Power |
3kw/380v/50Hz |
| Lift speed |
4-6m/min |
| Optional |
DC, Diesel or AC and DC |
Function
1. High working capacity, easily pushed around, most spacious platforms for several people to work on
2. High strength steel structures, smoothly lift up and drop down, easily operated, few faults.
3. Moving method: 4 wheel and 2 wheel types are optional, it can be pneumatic rubber tyres, solid rubber tyres or polyurethane tyres.
4. Power sources: local power available at the working sites (110V, 220V, 380V, 415V), diesel engines and generators
Safety protection
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency.
Service
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Sereral sets wearing parts will be free for you
