Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Incline | Cage: | 1 Tons |
| Max. Height: | 150-200 M | Rated Speed: | 33 M/min Or 0-33m/min |
| Power supply: | 380V/50Hz Or According To Client's Requirements | Motor Power: | 2*11 Kw |
| Motor Brand: | Taichang, Jinnuoi Or Other | Mast Section Size: | 650*650*1508mm |

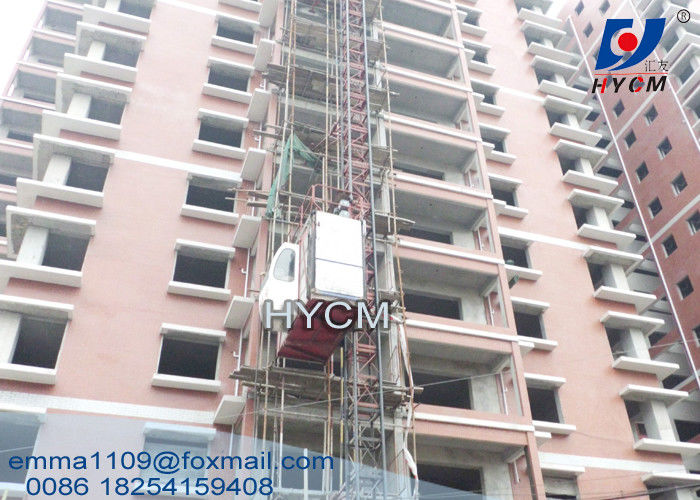

SC100 1 tons Cage Incline Construction Hoist For Passenger And Materials
Simple parameter
Model: SC100 Single cage construction hoist
Rated load: 1000kg (1ton)
Raged passengers: 10
Motor power: 2*11kw
Rated lifting speed: 0-36 m/min
Mast section size: 0.65*0.65*1.508m or 0.8*0.8*1.508m
Cage size: 3*1.3*2.3m or according to clients needs
Power supply: 380V/50Hz, 220V/60Hz or others
Max. Lifting height: 150m-200m
With all standard accessories
Specification
| Model | SC100 single cage construction hoist |
| Payload capacity | Up to 1000 kg |
| Speed (m/min) | 33 or 0-33 or others |
| Max. lifting height | 150-200 m (Increased lifting height on request.) |
| Cage width (internal) | 1.3 m & 1.5 m |
| Cage length (internal) | 3 m |
| Cage height (internal) | 2.2 m |
| Motor control | Directly driven without inverter |
| Motor power | 2x11 kw |
| Power supply range | 380V, 50Hz or 60 Hz, 3 phase |
| Type of mast | 650mm, Tubular steel with integrated rack |
| Length mast section | 1.508 m |
| Weight mast section with 1 racks | 127 kg |
Parts
1. Driver Cabin
The driver cabin of our construction hoist is constructed from hot dip galvanized plates with surface powder spraying treatment which ensure superior corrosion resistance. It has fan that can improve driver's working environment.
2. Gear Train
The new back gear is lengthened by one time at the stationary bearing end where it is equipped with locating taper pin to improve stress state and avoid loosening of back gear that will affect gear backlash.
The parts such as bear gear, idler wheel, etc. that have influence on running stability are improved to enhance machining and manufacturing precision. All of them will experience thermal refining treatment and galvanizing treatment after that, thus showing excellent durability. Case door pulley and cable pulley are made from nylon material which can prolong their life time and effectively reduce noise.
