Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Fixed With Tower Head | LOAD: | 4000kg |
| Boom: | 30m | Front Load: | 1.5tons |
| Power supply: | 380V/50Hz Or According To Client's Requirements | After Sale Service: | Engineers Available To Service Overseas |
| Color: | Yellow Or According To Clients Need |
4000kg Load Secondary Derrick Crane 30m Boom 1.5tons Front Load
Description
1. The derrick crane was conceived as a specialist disassembly crane for stripping down cranes on tall buildings, bridge pylons and telecommunication towers.
2. The dimensions and weights of all individual parts on the new crane are therefore designed to enable them to be dismantled with the aid of a very small hoist and removed via lift shafts in buildings.
3. Could equipt small lifting crane to dismantle itselfe.
Specification
| QD3015 Derrick Crane Specification | |
| Rated Lifting Moment | 600KN.m |
| Rated Loading Capacity | 4t |
| Max. Lifting Load | 4t |
| Tip Load | 1.5t |
| Max. Lifting Height | 200m |
| Jib length / Span | 30m |
| Working range | 3 to 30m |
| Slewing speed | 0-0.6r/min |
| Trolleying speed | 0-10 m/min |
| Luffing speed | A4=32/16/3.5 m/min |
| Power supply | 380V/50Hz or others |
| Electric switch box | Schneider |
| Slewing bearing model | 1220.32 |
Advantages of Derrick Crane
·Operations at great heights
·Adaptable universal machine for heavy loads
·Adaptable support base
·Compact component dimensions
·Rapid self-disassembly
·Maximum weight of individual transportation units
Service of of Derrick Crane
a. Rapid response to any inquiries and 24 hours on-line service.
b. Competitive price which directly from facotry. Welcome to visit us.
c. Professional inspection department to guarantee quality.
d. Engineers will go to construction site for guiding the installation and test-running for first time if clients needs.
e. 12 months super long time guarantee warranty.

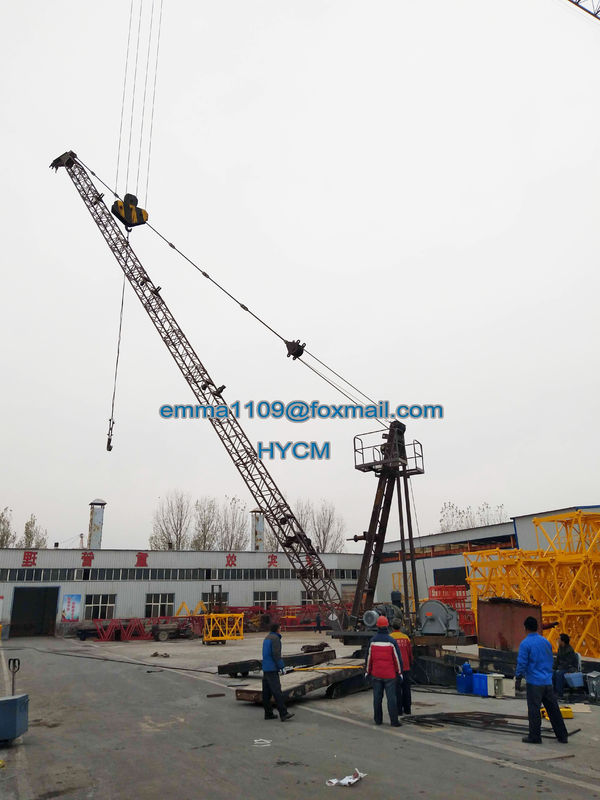

Photos of of Derrick Crane
