Product Details:
Payment & Shipping Terms:
|
| Application: | Buildings And Projects | Type: | Fixed With Tower Head |
|---|---|---|---|
| Max. Load: | 6t | Jib Length: | 40m |
| Tip. Load: | 1.5t | Power supply: | 380V/50Hz Or According To Client's Requirements |
| Mast section: | 1.6*1.6*3m (split Type) | Main Chord: | 160*16mm (angle Steel) |

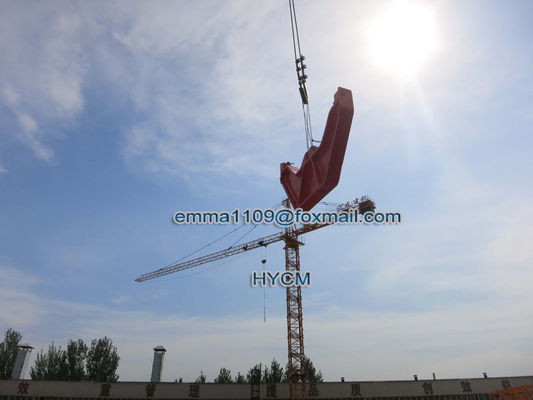

6 TONS Max. Load 40m Working Lifting Jib 4015 QTD80 Luffing Tower Crane
Performance parameters
• Max. jib length: 40m;
• Max. lifting capacity 6t;
• Max. hoisting capacity at jib tip:1.5t;
• Rated lifting moment: 800 Kn.m;
• Max. freestanding height: 35m; Max. working height of anchored crane: 160m;
Specification
| Rated Lifting Moment | 800KN.m |
| Rated Loading Capacity | 6t |
| Max. Lifting Load | 6t |
| Tip Load | 1.5t |
| Free standing height | 35m |
| Max. Lifting Height | 162.2m |
| Working range | 5.5-40m |
| Span | 40m |
| Hoisting speed(m/min) | (a=2)80/40 (a=4)40/20 |
| Slewing speed | 0-0.7r/min |
| Luffing speed ((m/min)) | 0-10 |
| Power supply | 380V/50Hz or others |
| Electric switch box | Schneider |
| Mast section dimensions | 1.2*1.2*3m(Block structure) |
| Main materials | 160*16 mm/angled steel |
Our Skilled Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field. Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.
Competitive Advantage:
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)-optional
7. Various safety devices
Spare Parts
