Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost

China Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost supplier
Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost supplier Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost supplier Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost supplier

Large Image :  Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost

Product Details:

Place of Origin: China
Brand Name: HYCM TOWER CRANE
Certification: CE, ISO, GOST, CU-TR
Model Number: QTZ400(PT8025) Tower Crane

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $282200-289500 per set
Packaging Details: Naked packing, 12*40;HQ containers.
Delivery Time: 50 days after receiving the deposit or origin LC
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Type: Fixed Without Tower Head Max. Load: 124t
Jib Length: 80m Tip. Load: 2.5t
Mast section: 2.5*2.5*6m Electric Box: Schneider
Power Supply: 380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need Control: VFD Or Inverter

Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost


 Performance parameters
• Max. lifting capacity 24t;
• Max. hoisting capacity at jib tip:2.5t;
• Rated lifting moment: 40000 Kn.m;
• Max. freestanding height: 73.2m; Max. working height of anchored crane: 206m;

Specification

Model PT8025 Tower Crane
Type Fixed with outside climbing of buildings
Working Radius (m) 80
Max. Load Capacity (T) 24
Tip Load (T) 2.5
Free standing height (m) 73.2
Max. Height with anchorages (m) 206
Mast Section dimension (m) 2.5×2.5×6, H steel 293×266mm

Hoisting Mechanism



Speed (m/min) 0-140 0-70
Motor power (kw) 75

Slewing Mechanism



Speed (r/min) 0-0.57
Motor power (kw) 2*9.5

Trolleying Mechanism



Speed (m/min) 0-78
Motor power (kw) 11

Jacking-up System



Speed (m/min) 0.4
Motor power (kw) 11
Total Power (kw) 142
Power Supply 380V/50Hz, 220V/60Hz or others


The Advantages

1. Reduce the dismounting requirements, lower weight, low mounting height, dismount each mast at a time in the air, save the labor cost, safety and fast.
2.  It is suitable for crossover work of the cranes, without the tower cap and pull rod, the safety will be increased when there need the crossover work.
3. It is suitable for the special requirement about the height, such as airport nearby, tunnel, workshop ,and the construction site with high-tension cable.
4. It is suitable for the construction site that has the requirement about the crane boom, it can be used as internal climbing crane in the high-rise buildings, irregular roof or small areas.
5. It is very convenient for dismounting in the restricted construction site, dismount each crane boom at a time by manual.


Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

Features
1) Safe and efficient control system. Three mechanisms are controlled by VFD / Inverter.
The speed regulator functions well, can be braked effectively and shift gears smoothly.
2) Foundation types: Cross Beam Without Ballast; Pre-embedded Four Outriggers Type; Base with ballast type / Cross Beam Inclined Stay Bar With Ballast;
What’s more, Traveling Type (Mobile) Tower cranes and Inside Climbing tower cranes are also available.
3) Tower cranes often give the best combination of height and lifting capacity and are used in the construction of tall buildings.

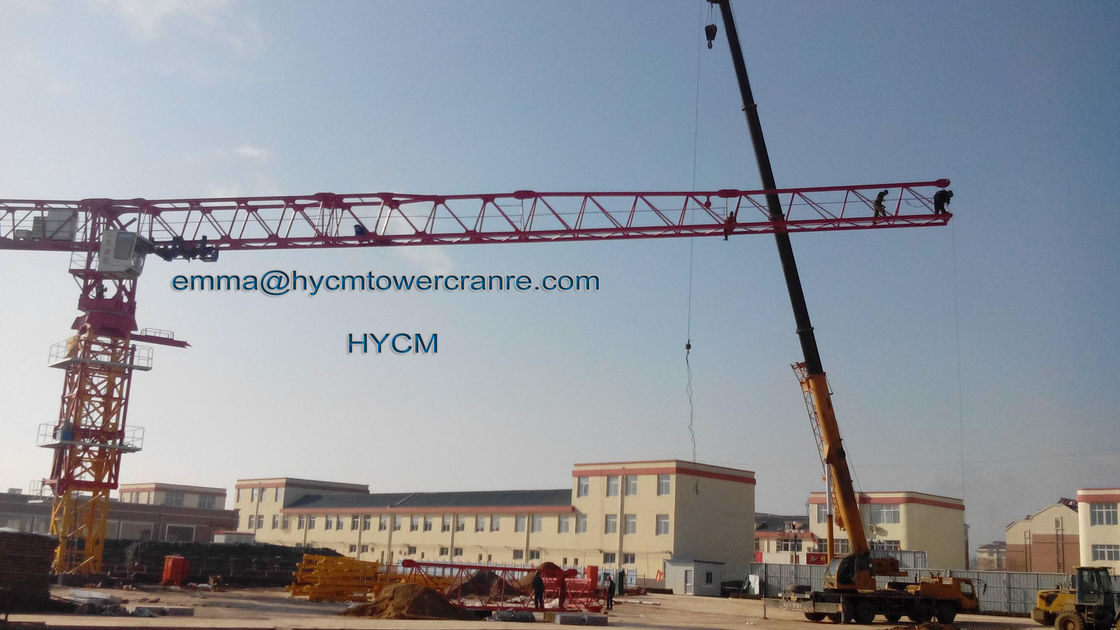

 Pictures

Large 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm CostLarge 24t QTP8025 Electric Flat Top Tower Crane 80m Long Arm Cost
