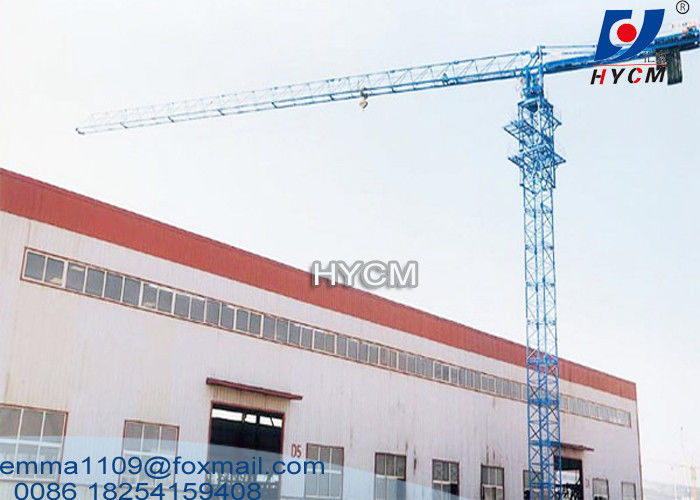

Flat Top TowerCrane 6tons QTZ63-PT5510 55m Boom Long Tower Kren Chart
-
-
Large Image :
Flat Top TowerCrane 6tons QTZ63-PT5510 55m Boom Long Tower Kren Chart
|
Product Details:
| Place of Origin: |
China |
| Brand Name: |
HYCM TOWER CRANE |
| Certification: |
CE, ISO, GOST, CU-TR |
| Model Number: |
QTZ63(PT5510) Tower Crane |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$60600-65900 per set |
| Packaging Details: |
Naked packing, 5*40’HQ+1*20'GP containers. |
| Delivery Time: |
15 days after receiving the deposit or origin LC |
| Payment Terms: |
TT, LC |
| Supply Ability: |
30 sets per month |
|
Detailed Product Description
| Application: |
Buildings And Projects |
Type: |
Fixed With Tower Head |
| Max. Load: |
6t |
Jib Length: |
55m |
| Tip. Load: |
1.0t |
Power supply: |
380V/50Hz Or According To Client's Requirements |
| Mast section: |
1.6*1.6*2.5m (Block Type) |
Main Chord: |
135*10mm (square Tube) |
Flat Top TowerCrane 6tons QTZ63-PT5510 55m Boom Long Tower Kren Chart
Technical Parameters
1) Nominal Lifting Moment: 630 KN.m
2) Working Range: 3-55 m
3) Max. Lifting Capacity: 6 t
4) Independent Standing Height: 40 m
5) Attached Standard Height: 150 m
6) Lifting Speed: 80/40/8.5 40/20/4.25 m/mim
7) Slewing Speed: 0.6 r/min
Specification
| Rated lifting moment (kN.m) | 630 |
| Lifting height (m) | Rope fall | Free-standing stationary crane | Anchored crane |
| α＝2 | 40 | 150 |
| α＝4 | 40 | 150 |
| Working radius (m) | Max. working radius | 55 |
| Min. working radius | 3 |
| Max. lifting capacity (t) | 5 |
| Hoisting mechanism | Rope fall | α＝2 | α＝4 |
| Speed (m/min) | 80/40/8.5 | 40/20/4.25 |
| Lifting weight (t) | 1 | 2.5 | 2.5 | 5 |
| Power (kW) | 24/24/5.5 |
| Tolleying mechanism | Speed (m/min) | 0.6 |
| Power (kW) | 3.7 |
| Slewing mechanism | Speed (r/min) | 0.4 |
| Power (kW) | 4 |
Advantage
1. 15 years of experience in supplying new Topless tower crane with HYCM Brand which export to more than 20 countries with CE / ISO Certificates.
2. Stationary / Traveling and internal climbing type topless tower crane are available.
3. Quality Control: Impeller blasting/rust protection paint, advanced painting process and Strict and experience welding line
4. New designed mast, can be used to Internal and external climbing tower crane
5. Well known brand mechanism system, Schneider Electronic control system, Jjiangte and Jiuhe motor
6. Engineers available to service machinery overseas.
7. For warranty: 12 months from the B/L date.
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
Applications
It’s used in construction building site, such as Multi commercial housing, High rise building, Skyscraper, and Workshop Material handling etc.
